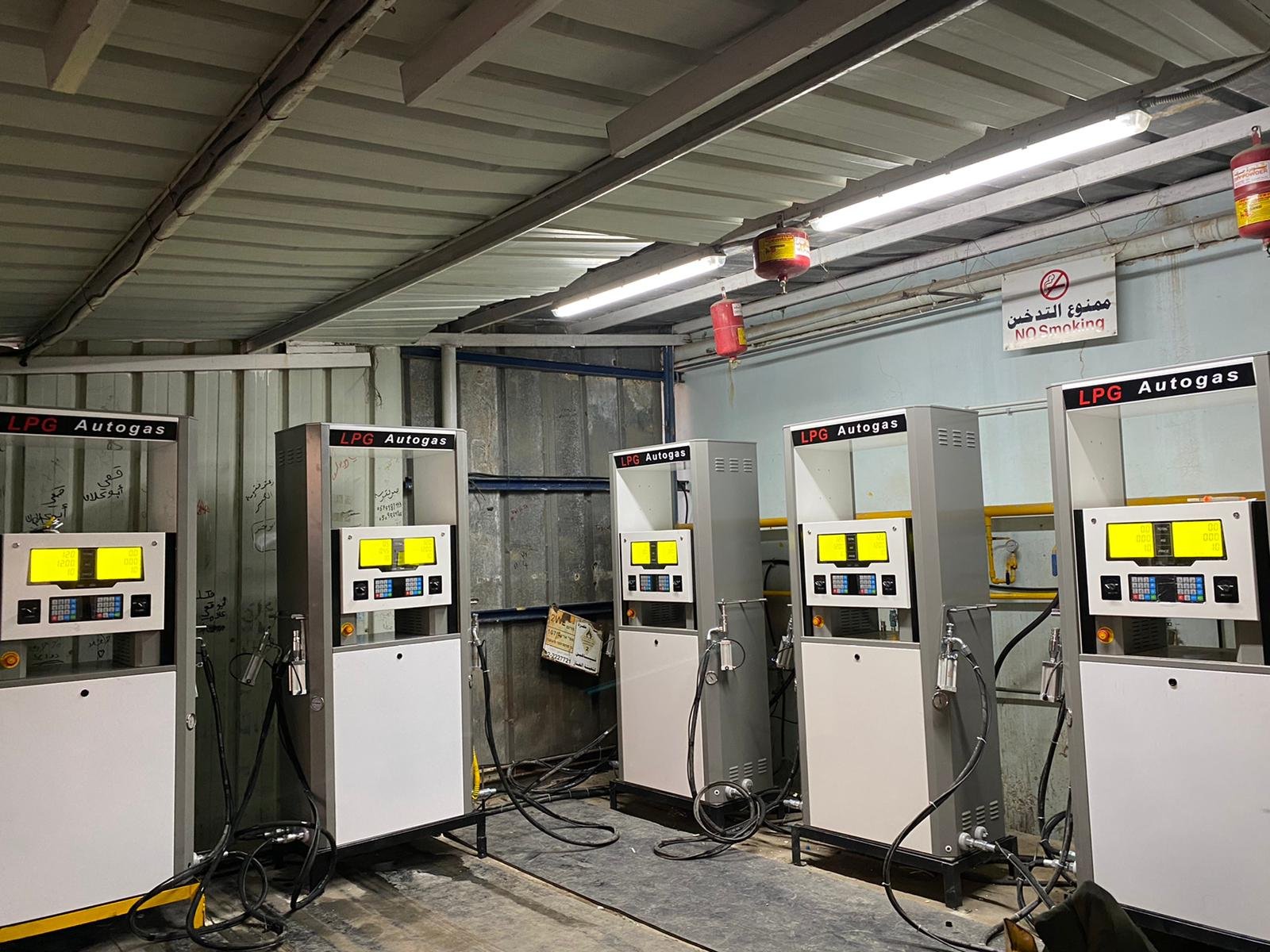

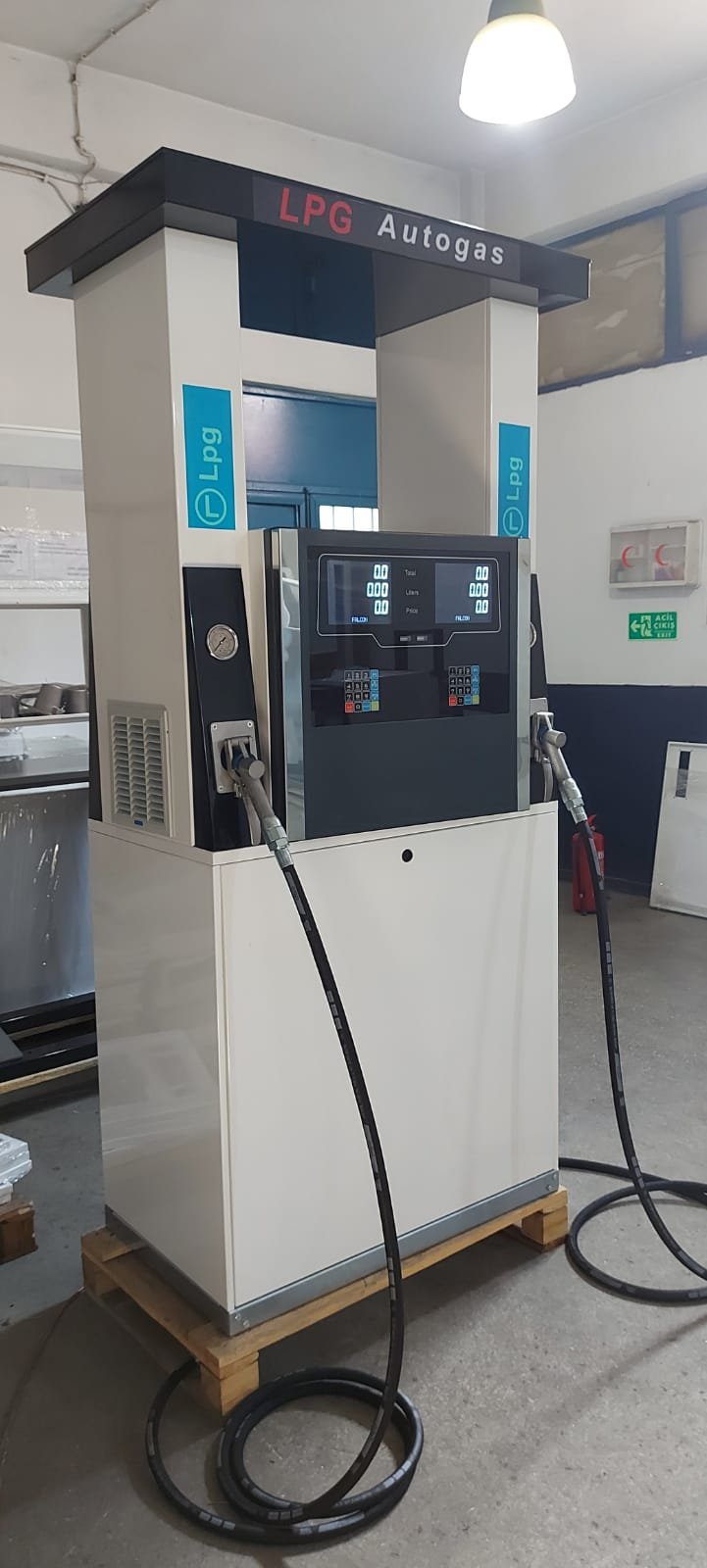

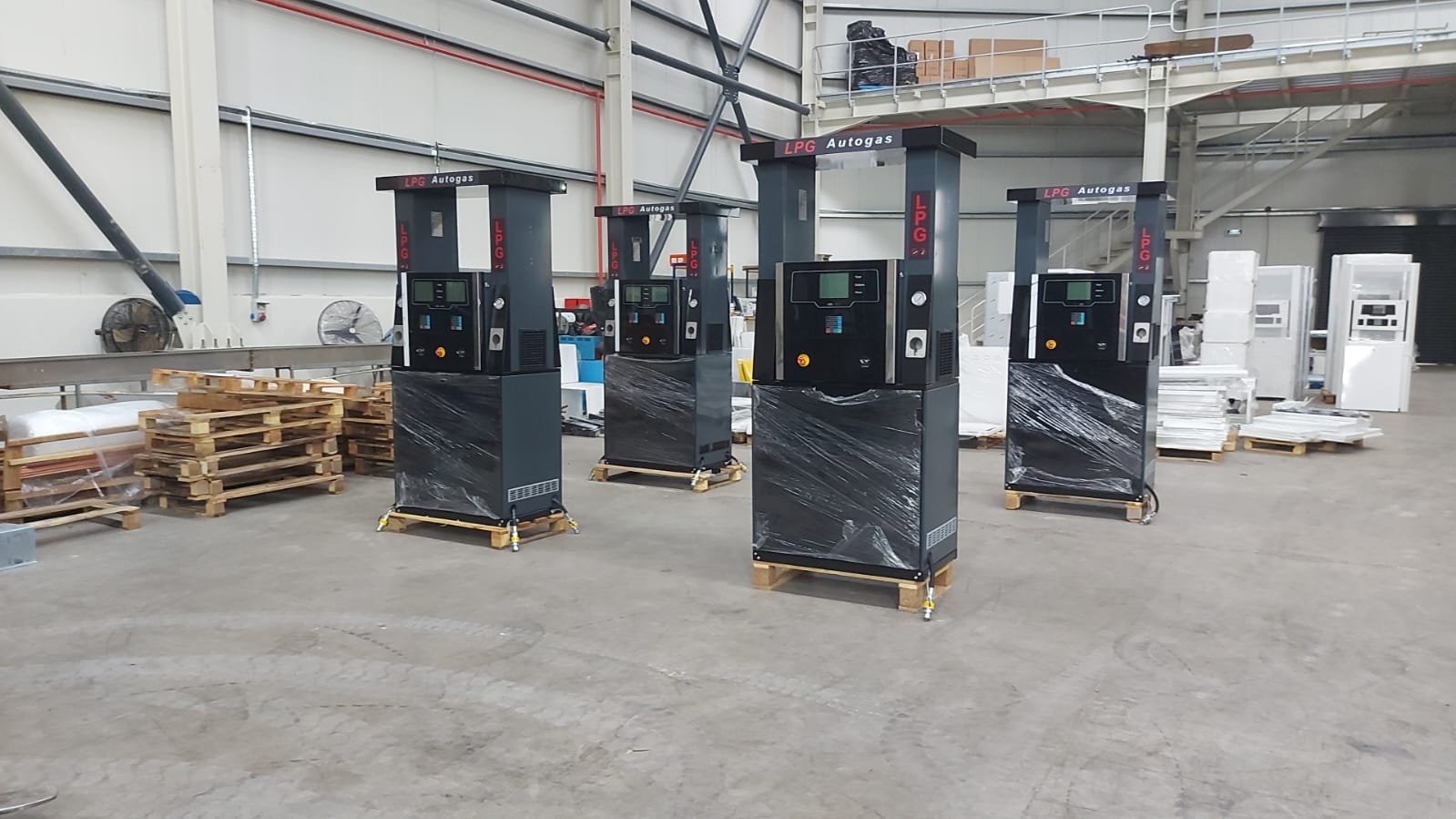

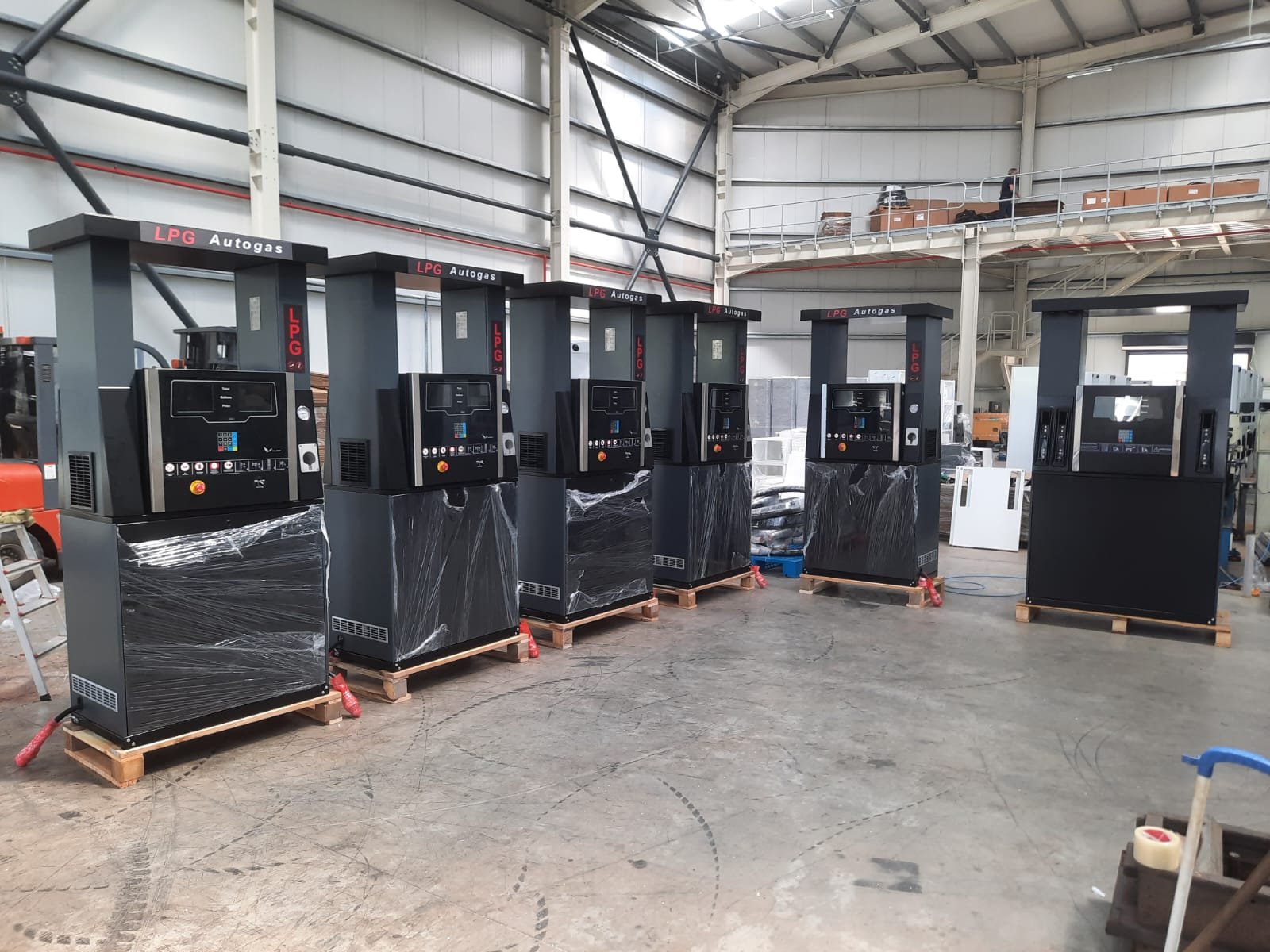

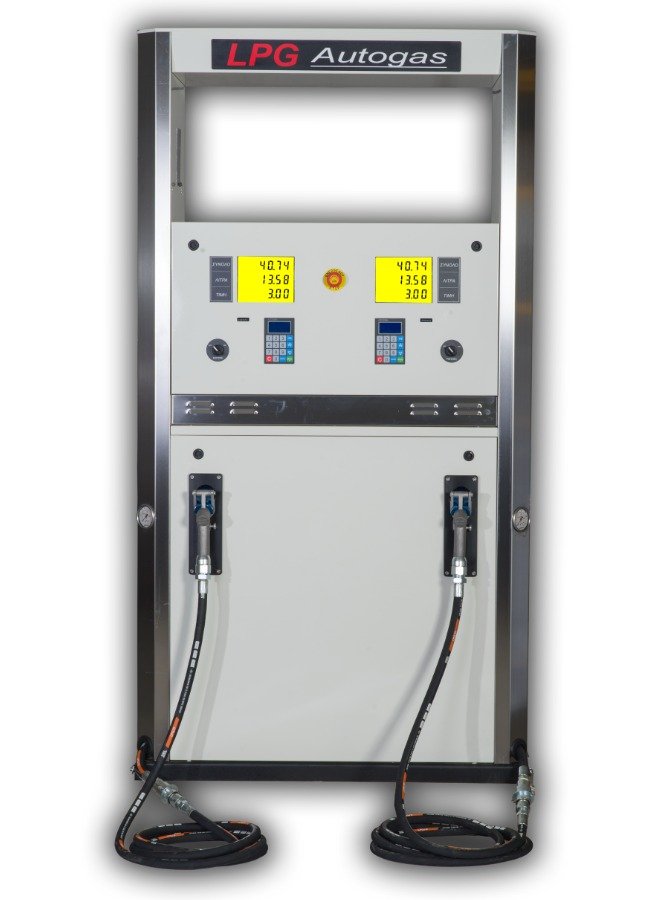

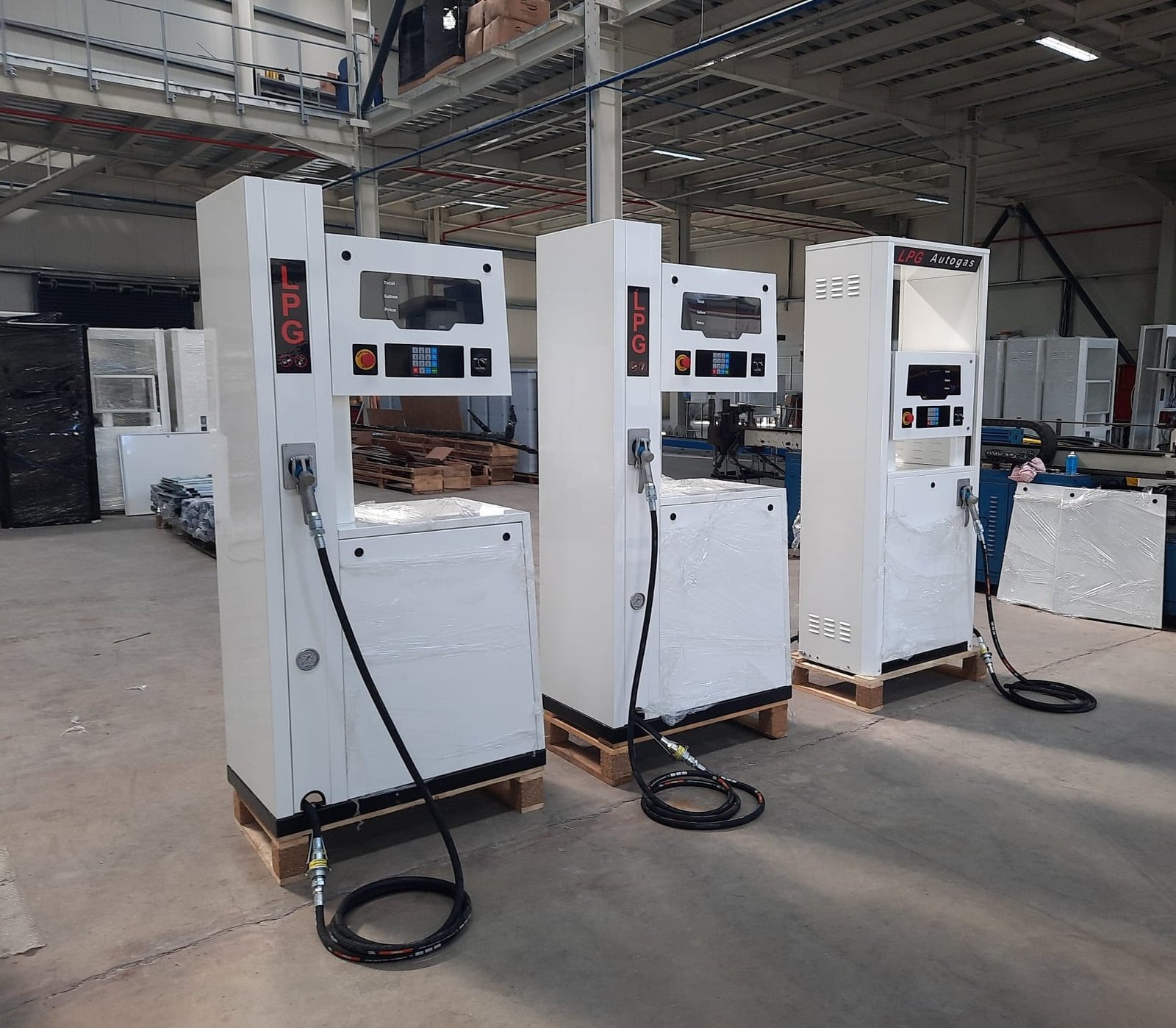

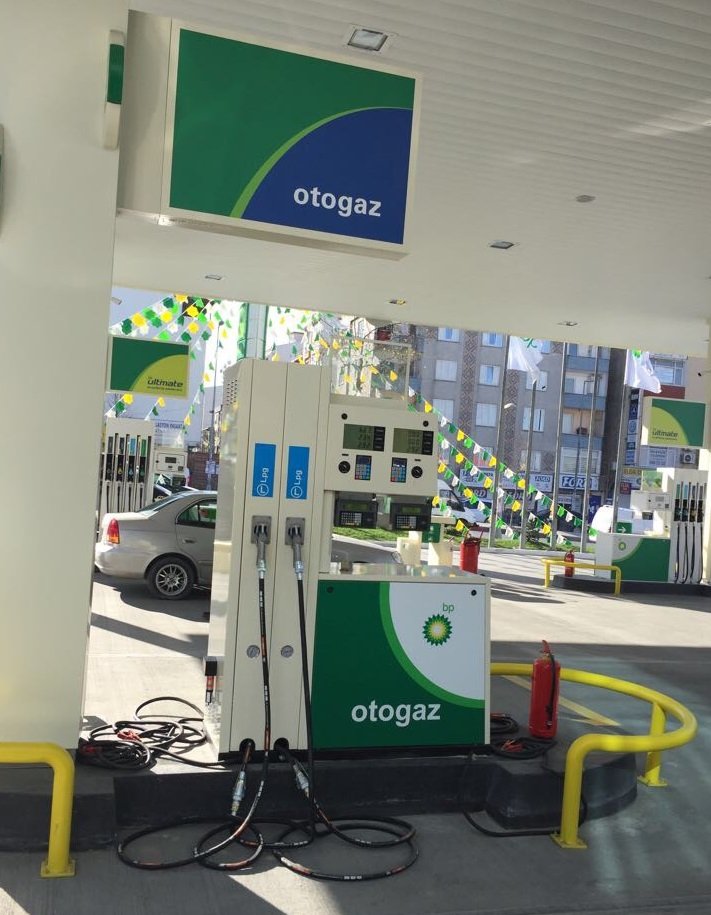

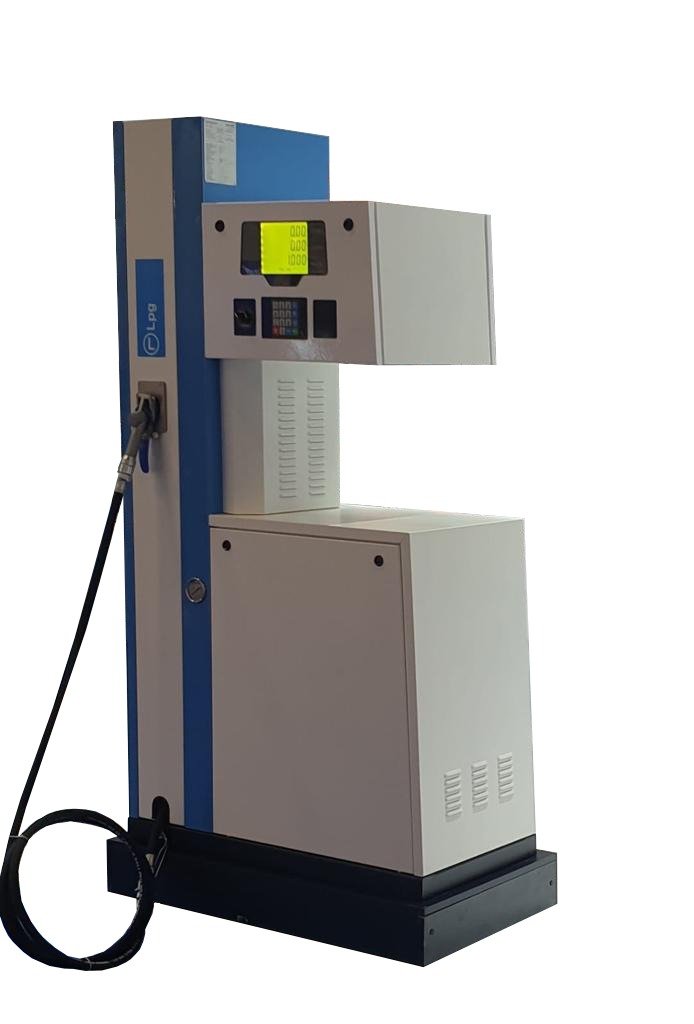

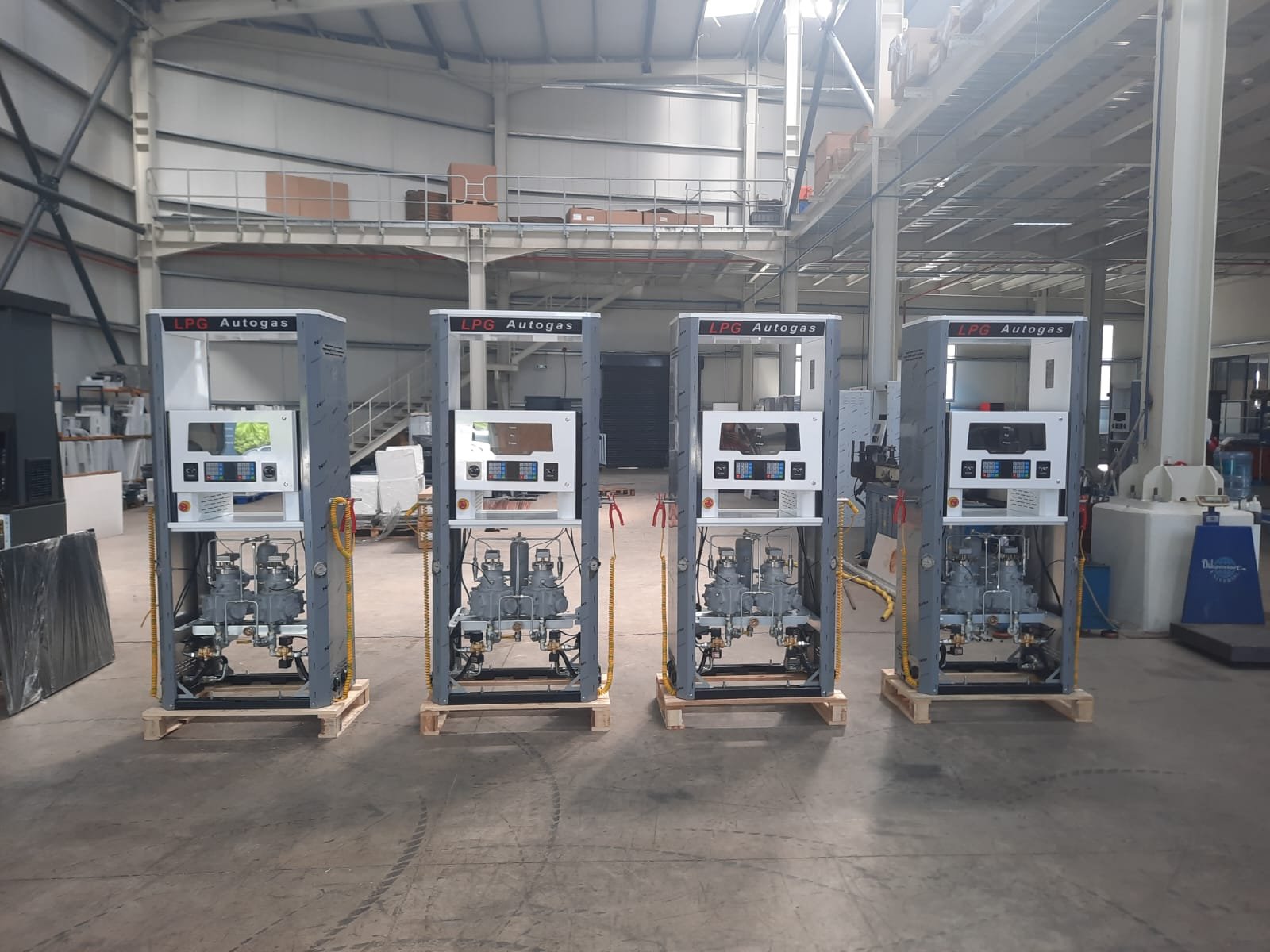

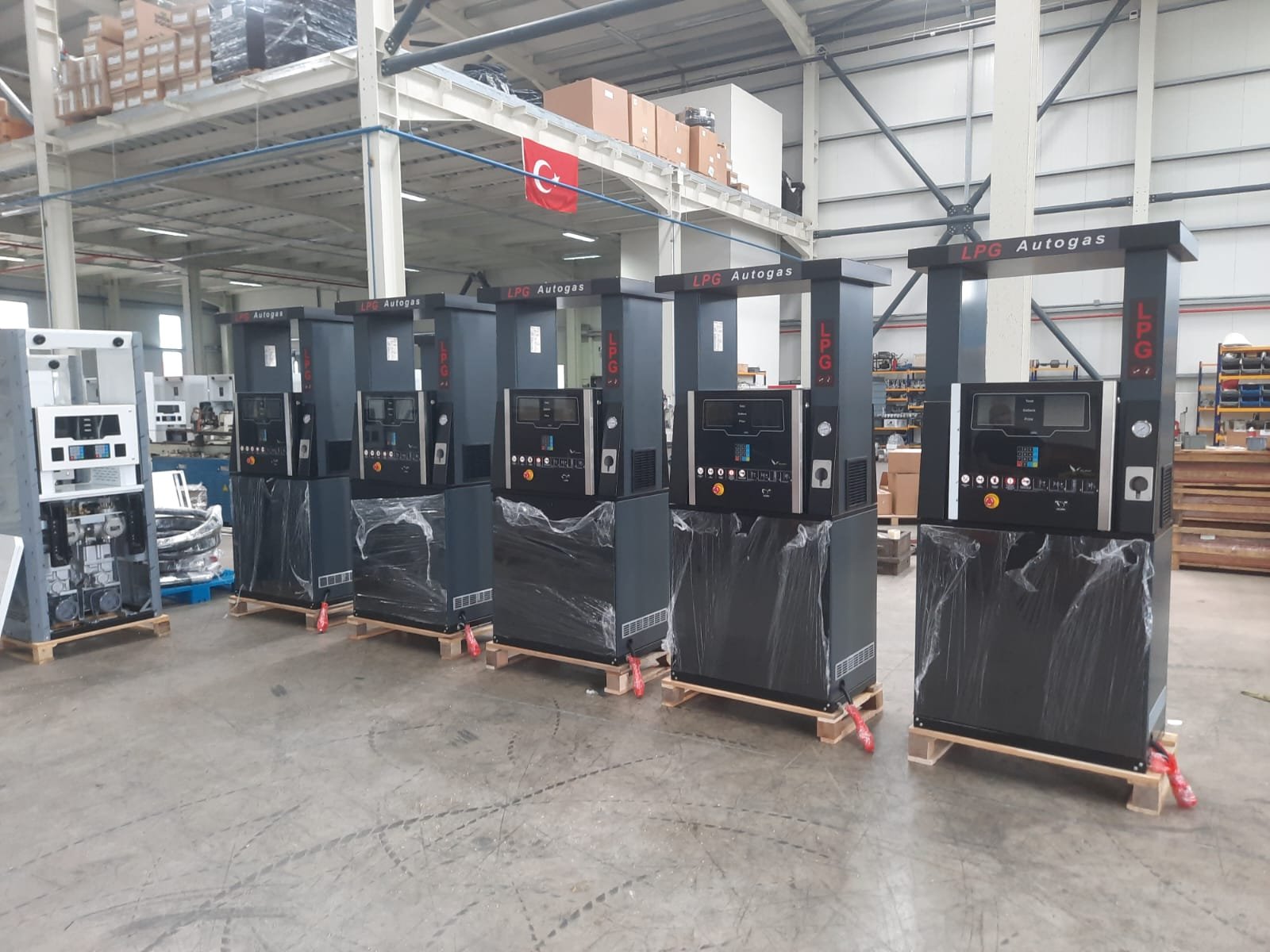

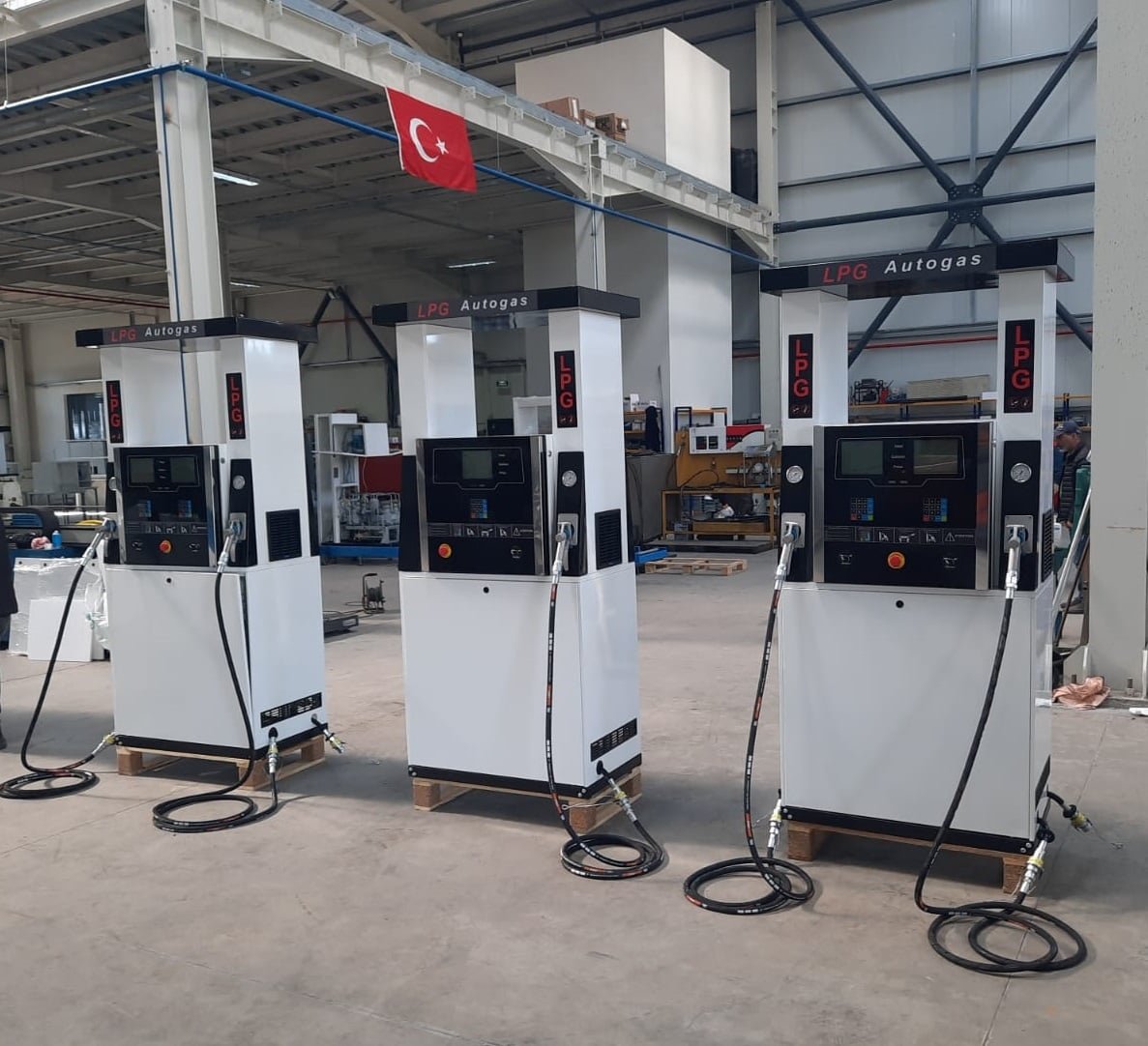

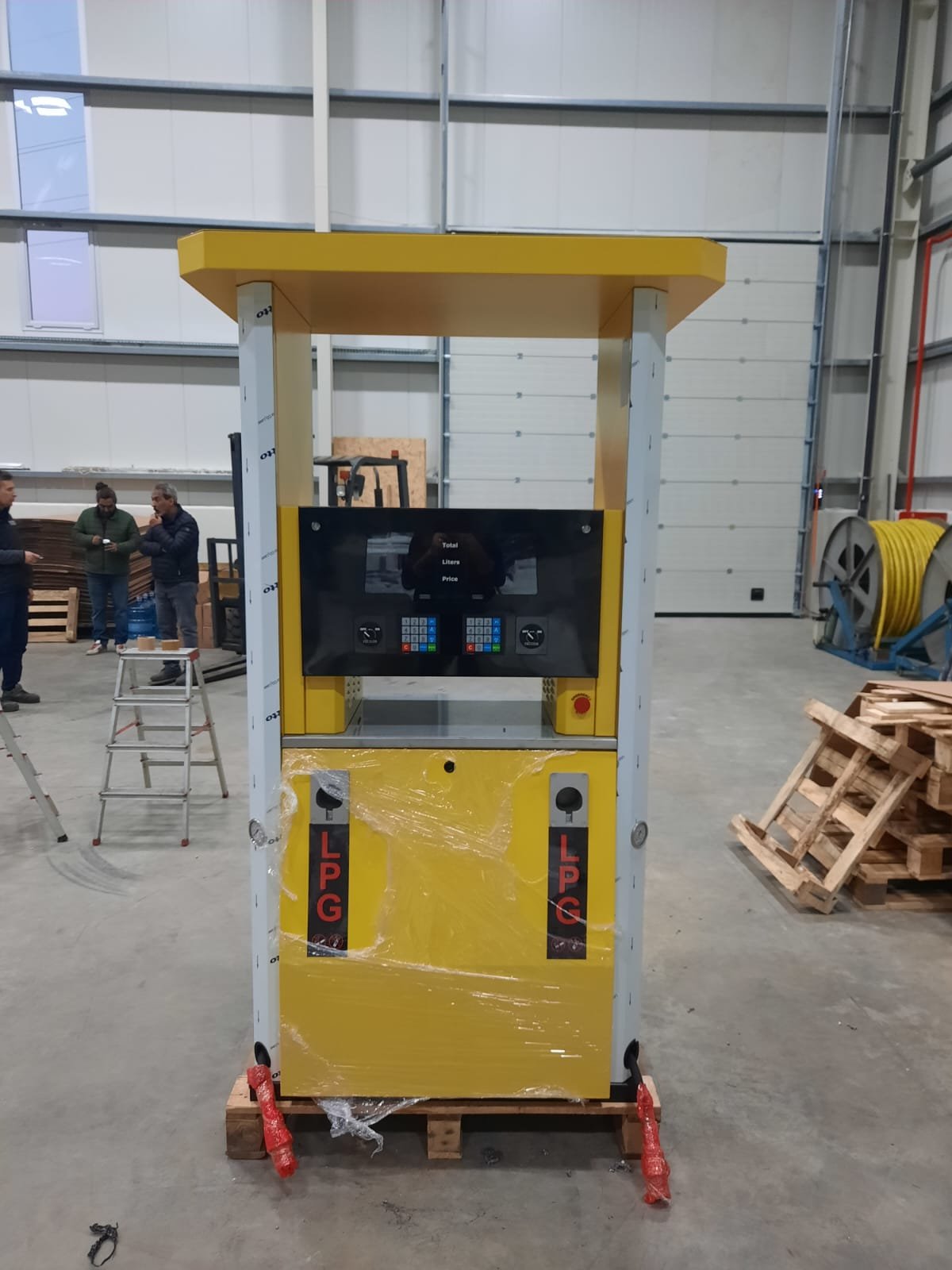

LPG Dispenser
In LPG autogas sector, our company that provides high quality, customer oriented solution with competitive prices aims to get maximum efficiency by reducing the investment cost.
SENSITIVE / DURABLE / QUALIFIED
MID Certificate : 2014/32/EU
ATEX Certificate : 2014/34/EU
CE Certificate : 97/23/EC
DISPLAY
Wide viewing angle, yellow – green LED illuminated,possibility to see menu operations.Price 8 digits, volume 6 digits, unit price 6 digits.
ELECTRONIC UNIT
PCUX model, MID approved, comply with OIML standards. RS232, RS485 and Current Loop communication port options. Supports Wayne Dart and Gilbarco protocols. Non-resettable electronic totalizer.Electronic calibration. The ability to record the Last 100 Sales and the Last 50 Alarms.Three-stage password and access to menus via service terminal (optional).
KEYBOARD
User-friendly, 7 buttons, start stop buttons entegrated on keypad, durable and useful, modern designed keypad.
TOTALIZER
10 digit electronic and 7 digit non-resettable electronic totalizers are used in our LPG dispensers.
PULSER
ATEX certified, MID approved, IP65 compliant, with optical pulse encoder.
ATC
MID approved, digital control with 0,1 centigrade degree sensitivity.
METER
In our all LPG dispensers, OIML certified, 4 pistons, magnetic displacement, available for calibration, +/- 0,005 measurement accuracy LPG meters are used.
NOZZLE & HOSE
With the options of aluminium and brass sleeve, 360° rotable LPG nozzle and 1/2” diameter, 4 – 4,5 – 5 m in accordance with EN 1762 norm LPG hose are used in our LPG dispensers.
FRAME
LPG dispenser frames are produced with electro static painted galvanized plate body and inox side columns. Preferably, all body can be produced completely inox.
FLOW CONTROL VALVE
ATEX Certificated, 3/4″ Solenoid Valve (230V / 50Hz) used.
FILTER
Stainless steel filter used.
FLOWRATE RANGE
(Qmin – Qmax) : 5 – 50 L/min
VOLTAGE RANGE
85 – 245V AC
