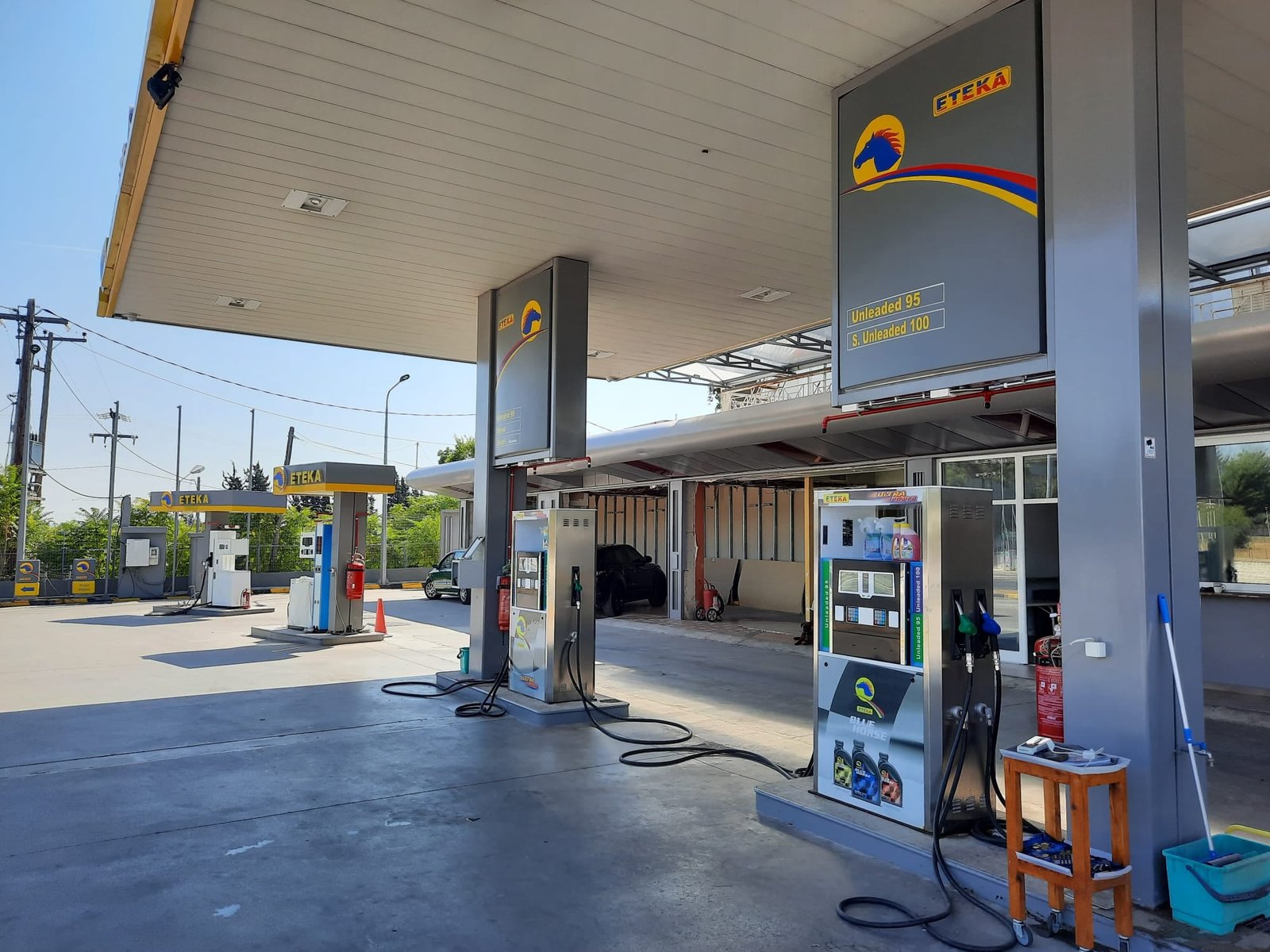

Highly reliable and sensitive fuel dispensers equipped with world-standard equipments.

• Comply with OIML standards.Long life,sensitive and reliable.
• Screen with wide viewing angle.Easy to use keypad and Electronic unit compatible with all cash registers.
• Durable and sensitive fuel flowmeter and compact hydraulic unit.
• Vapour Recovery System (optional).
• MID Certificate.
• ATEX Certificate.
• EC Declaration Of Conformity.

DISPLAY

• Yellow-green LED illuminated display with wide viewing angle.
• Easy-to-read characters and displays 6-digit unit price & volume , 8-digit money amount. Possibility to see menu operations from sales screen.

KEYBOARD

• It has a user-friendly and modern design keypad.
• For extra security in addition to password, access to menu with service terminal (optional).

PUMP (SUCTION TYPE)

• Internal Gear Pump with air separator, by-pass valves, suction strainer and check valves

VOLTAGE RANGE

• Possibility of operation in wide voltage range (85-245V AC).

TOTALIZER

• Non-resettable electronic and electro-mechanic totalizater

PULSER

• ATEX certified, MID approved, IP65 compliant, with optical pulse encoder.

ATC

• MID approved, digital control with 0,1 centigrade degree sensitivity.

FLOWMETER

• In our all fuel dispensers, OIML certificated, 4 pistons, positive displacement, available for calibration fuel flowmeters are used.

COMMUNICATION

• RS232, RS485 and Current Loop 3 different communication ports are available.
  Supports Wayne Dart And Gilbarco protocols.

ELECTRONIC UNIT

• MID Approved
• The ability to record the Last 100 Sales and the Last 50 Alarms
• Electronic Calibration

FRAME AND NOZZLE

• Different frame color and nozzle options.

ELECTRICITY MOTOR (SUCTION TYPE)

• 0,75Kw, 380V, Ex-proof motor

FILTER

• Stainless Steel Filter

FLOWRATE RANGE

• Qmin – Qmax : 5 – 100 L/min
